Inheritance diagram for smc::internal::MFEAxisPositionMonitor:

[legend]

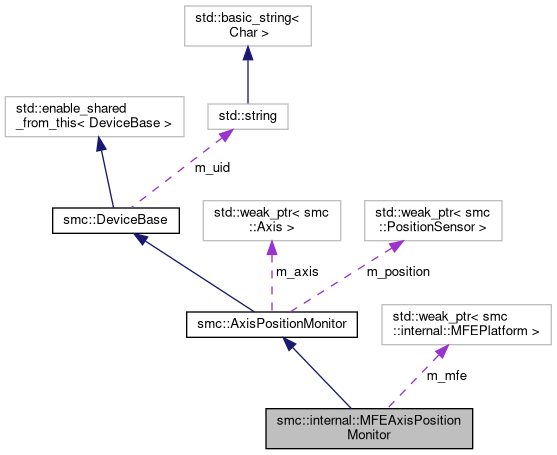

Collaboration diagram for smc::internal::MFEAxisPositionMonitor:

[legend]

Public Types
typedef std::shared_ptr< MFEAxisPositionMonitor >	Shared

Public Types inherited from smc::AxisPositionMonitor
enum	State { UNKNOWN , ENABLED , DISABLED , TRIGGERED }

typedef std::shared_ptr< AxisPositionMonitor >	Shared

Public Types inherited from smc::DeviceBase
typedef smc::DeviceType	DeviceType

typedef std::shared_ptr< DeviceBase >	Shared

Public Member Functions
	MFEAxisPositionMonitor (const std::string &uid, const std::shared_ptr< Axis > &axis, const std::shared_ptr< PositionSensor > &position, const std::shared_ptr< MFEPlatform > &mfe)

std::future< units::value_t >	getDifference (units::unit_t unit) const override
	Get current position difference between axis and positionSensor.

std::future< units::value_t >	getMaxDifference (units::unit_t unit) const override
	Get max difference since monitor was enabled.

std::future< State >	getState () const override
	Get the current device state.

std::future< void >	setEnabled (bool enabled) override
	Enable/disable the monitor. More...

units::value_t	lastDifference (units::unit_t unit) const override
	Get last known difference. More...

State	lastState () const override
	Get last known state. More...

std::future< std::set< std::string > >	listConfig () const override
	list device configuration options

std::future< std::string >	getConfig (const std::string &name) const override
	get device configuration value More...

std::future< void >	setConfig (const std::string &name, const std::string &value) const override
	set device configuration value More...

Public Member Functions inherited from smc::AxisPositionMonitor
	AxisPositionMonitor (const std::string &address, const std::shared_ptr< Axis > &axis, const std::shared_ptr< PositionSensor > &position)
	Construct a new AxisPositionMonitor Device. More...

DeviceType	type () const override
	Get device type. More...

std::shared_ptr< Axis >	axisDevice () const

std::shared_ptr< PositionSensor >	positionSensorDevice () const

Public Member Functions inherited from smc::DeviceBase
DeviceId	uid () const
	Get the address of device. More...

virtual bool	canConvert (const units::Value &value, units::unit_t unit) const
	Check if unit conversion is possible in a manner specific to this device. More...

virtual bool	convert (units::Value &value, units::unit_t unit) const
	Convert value in a manner specific to this device. More...

std::string	toString () const
	debug and logging operation

Protected Attributes
std::weak_ptr< MFEPlatform >	m_mfe

Protected Attributes inherited from smc::AxisPositionMonitor
std::weak_ptr< Axis >	m_axis

std::weak_ptr< PositionSensor >	m_position

Protected Attributes inherited from smc::DeviceBase
const std::string	m_uid

Additional Inherited Members
Public Attributes inherited from smc::DeviceBase
ccut::Signal< const DeviceBase::Shared & >	updateSignal
	device update signal More...

Protected Member Functions inherited from smc::DeviceBase
	DeviceBase (const std::string &uid)
	Construct a new ABaseDevice, linking pointer to platform object. More...

Detailed Description

Definition at line 33 of file MFEAxisPositionMonitor.hpp.

Member Function Documentation

◆ getConfig()

std::future< std::string > MFEAxisPositionMonitor::getConfig ( const std::string & name ) const

overridevirtual

get device configuration value

Parameters

name	value to retrieve

Returns: the current value (yml encoded)

Reimplemented from smc::DeviceBase.

Definition at line 258 of file MFEAxisPositionMonitor.cpp.

◆ lastDifference()

units::value_t MFEAxisPositionMonitor::lastDifference ( units::unit_t unit ) const

overridevirtual

Get last known difference.

Returns: units::value_t

updateSignal is emitted whenever this value updated

Implements smc::AxisPositionMonitor.

Definition at line 185 of file MFEAxisPositionMonitor.cpp.

◆ lastState()

AxisPositionMonitor::State MFEAxisPositionMonitor::lastState ( ) const

overridevirtual

Get last known state.

Returns: State

Implements smc::AxisPositionMonitor.

Definition at line 204 of file MFEAxisPositionMonitor.cpp.

◆ setConfig()

std::future< void > MFEAxisPositionMonitor::setConfig	(	const std::string &	name,
		const std::string &	value
	)		const

overridevirtual

set device configuration value

Parameters

name	name of the configuration value to set
value	value to set

Reimplemented from smc::DeviceBase.

Definition at line 278 of file MFEAxisPositionMonitor.cpp.

◆ setEnabled()

std::future< void > MFEAxisPositionMonitor::setEnabled ( bool enabled )

overridevirtual

Enable/disable the monitor.

the difference may still be monitored even if disabled

enabling a TRIGGERED monitor will re-arm it and reset its max-difference counter

Implements smc::AxisPositionMonitor.

Definition at line 141 of file MFEAxisPositionMonitor.cpp.

The documentation for this class was generated from the following files:

/builds/mro/controls/sambuca/sambuca-motion-lib/src/platform/specialized/MFEPlatform/MFEAxisPositionMonitor.hpp
/builds/mro/controls/sambuca/sambuca-motion-lib/src/platform/specialized/MFEPlatform/MFEAxisPositionMonitor.cpp
