smc::AxisPositionMonitor Class Reference

This object represent a link between an axis and a position sensor. More...

#include <AxisPositionMonitor.hpp>

Inheritance diagram for smc::AxisPositionMonitor:

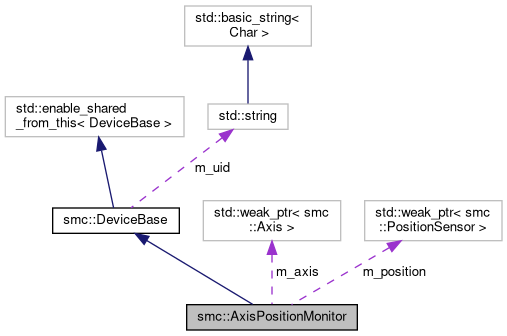

Collaboration diagram for smc::AxisPositionMonitor:

Public Types
enum	State { UNKNOWN , ENABLED , DISABLED , TRIGGERED }
typedef std::shared_ptr< AxisPositionMonitor >	Shared
Public Types inherited from smc::DeviceBase
typedef smc::DeviceType	DeviceType
typedef std::shared_ptr< DeviceBase >	Shared

Public Member Functions
	AxisPositionMonitor (const std::string &address, const std::shared_ptr< Axis > &axis, const std::shared_ptr< PositionSensor > &position)
	Construct a new AxisPositionMonitor Device. More...
DeviceType	type () const override
	Get device type. More...
std::shared_ptr< Axis >	axisDevice () const
std::shared_ptr< PositionSensor >	positionSensorDevice () const
virtual std::future< units::value_t >	getDifference (units::unit_t unit) const =0
	Get current position difference between axis and positionSensor.
virtual std::future< units::value_t >	getMaxDifference (units::unit_t unit) const =0
	Get max difference since monitor was enabled.
virtual std::future< State >	getState () const =0
	Get the current device state.
virtual std::future< void >	setEnabled (bool enabled)=0
	Enable/disable the monitor. More...
virtual units::value_t	lastDifference (units::unit_t unit) const =0
	Get last known difference. More...
virtual State	lastState () const =0
	Get last known state. More...
Public Member Functions inherited from smc::DeviceBase
DeviceId	uid () const
	Get the address of device. More...
virtual std::future< std::set< std::string > >	listConfig () const
	list device configuration options
virtual std::future< std::string >	getConfig (const std::string &name) const
	get device configuration value More...
virtual std::future< void >	setConfig (const std::string &name, const std::string &value) const
	set device configuration value More...
virtual bool	canConvert (const units::Value &value, units::unit_t unit) const
	Check if unit conversion is possible in a manner specific to this device. More...
virtual bool	convert (units::Value &value, units::unit_t unit) const
	Convert value in a manner specific to this device. More...
std::string	toString () const
	debug and logging operation

Protected Attributes
std::weak_ptr< Axis >	m_axis
std::weak_ptr< PositionSensor >	m_position
Protected Attributes inherited from smc::DeviceBase
const std::string	m_uid

Additional Inherited Members
Public Attributes inherited from smc::DeviceBase
ccut::Signal< const DeviceBase::Shared & >	updateSignal
	device update signal More...
Protected Member Functions inherited from smc::DeviceBase
	DeviceBase (const std::string &uid)
	Construct a new ABaseDevice, linking pointer to platform object. More...

Detailed Description

This object represent a link between an axis and a position sensor.

this link may be implemented hardware or software

this object is likely to have a configurable threshold setting.

Definition at line 47 of file AxisPositionMonitor.hpp.

Constructor & Destructor Documentation

AxisPositionMonitor()

smc::AxisPositionMonitor::AxisPositionMonitor	(	const std::string &	address,
		const std::shared_ptr< Axis > &	axis,
		const std::shared_ptr< PositionSensor > &	position
	)

Construct a new AxisPositionMonitor Device.

Parameters

address	Unique address for the AxisPositionMonitor
platform	Parent platform for the object
configPlatform	Parent config platform for the object

Definition at line 45 of file AxisPositionMonitor.cpp.

Member Function Documentation

lastDifference()

virtual units::value_t smc::AxisPositionMonitor::lastDifference ( units::unit_t  unit ) const

pure virtual

Get last known difference.

Returns

units::value_t

updateSignal is emitted whenever this value updated

Implemented in smc::internal::MFEAxisPositionMonitor.

lastState()

virtual State smc::AxisPositionMonitor::lastState ( ) const

pure virtual

Get last known state.

Returns

State

Implemented in smc::internal::MFEAxisPositionMonitor.

setEnabled()

virtual std::future<void> smc::AxisPositionMonitor::setEnabled ( bool  enabled )

pure virtual

Enable/disable the monitor.

the difference may still be monitored even if disabled

enabling a TRIGGERED monitor will re-arm it and reset its max-difference counter

Implemented in smc::internal::MFEAxisPositionMonitor.

type()

DeviceBase::DeviceType smc::AxisPositionMonitor::type ( ) const

overridevirtual

Get device type.

Returns

DeviceType AXIS_POSITION_MONITOR device type

Implements smc::DeviceBase.

Definition at line 54 of file AxisPositionMonitor.cpp.

---

The documentation for this class was generated from the following files:

• /builds/mro/controls/sambuca/sambuca-motion-lib/src/device/AxisPositionMonitor.hpp
• /builds/mro/controls/sambuca/sambuca-motion-lib/src/device/AxisPositionMonitor.cpp
