smc::DeviceBase Class Reference

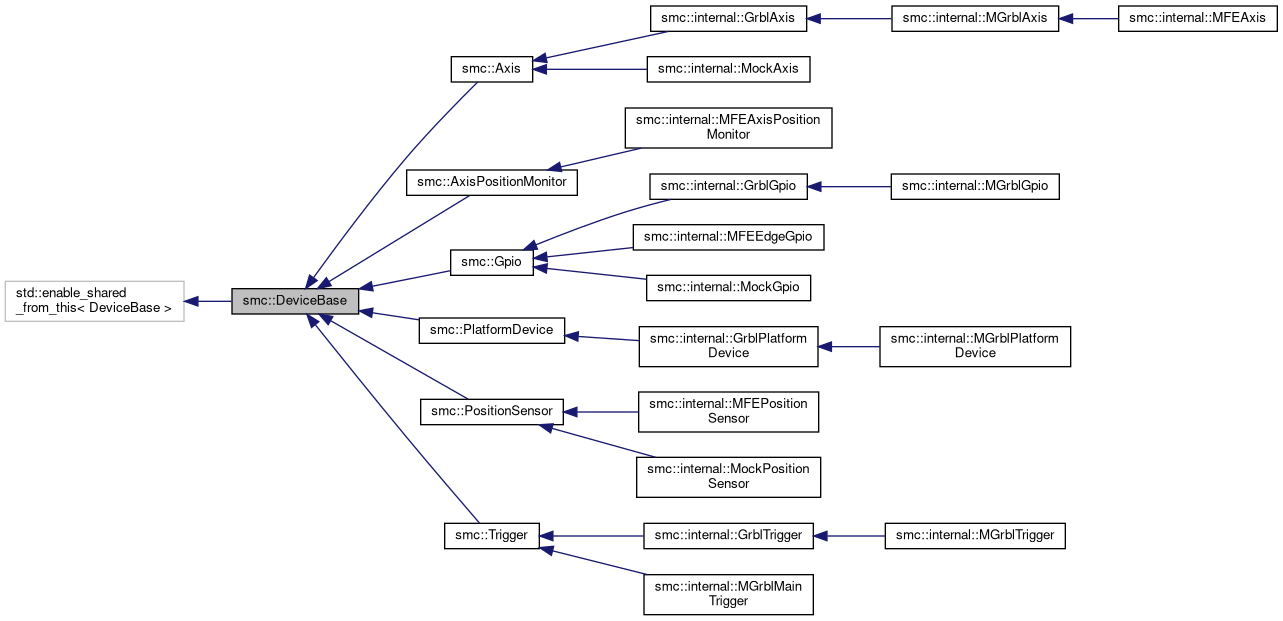

Inheritance diagram for smc::DeviceBase:

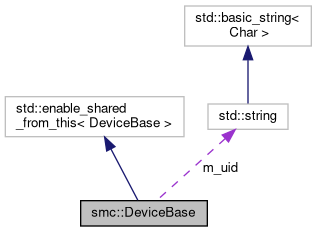

Collaboration diagram for smc::DeviceBase:

Public Types
typedef smc::DeviceType	DeviceType
typedef std::shared_ptr< DeviceBase >	Shared

Public Member Functions
virtual DeviceType	type () const =0
DeviceId	uid () const
	Get the address of device. More...
virtual std::future< std::set< std::string > >	listConfig () const
	list device configuration options
virtual std::future< std::string >	getConfig (const std::string &name) const
	get device configuration value More...
virtual std::future< void >	setConfig (const std::string &name, const std::string &value) const
	set device configuration value More...
virtual bool	canConvert (const units::Value &value, units::unit_t unit) const
	Check if unit conversion is possible in a manner specific to this device. More...
virtual bool	convert (units::Value &value, units::unit_t unit) const
	Convert value in a manner specific to this device. More...
std::string	toString () const
	debug and logging operation

Public Attributes
ccut::Signal< const DeviceBase::Shared & >	updateSignal
	device update signal More...

Protected Member Functions
	DeviceBase (const std::string &uid)
	Construct a new ABaseDevice, linking pointer to platform object. More...

Protected Attributes
const std::string	m_uid

Detailed Description

Definition at line 88 of file DeviceBase.hpp.

Constructor & Destructor Documentation

DeviceBase()

DeviceBase::DeviceBase ( const std::string &  uid )

protected

Construct a new ABaseDevice, linking pointer to platform object.

Parameters

address

Address of the device.

Definition at line 74 of file DeviceBase.cpp.

Member Function Documentation

canConvert()

bool DeviceBase::canConvert ( const units::Value &  value, units::unit_t  unit  ) const

virtual

Check if unit conversion is possible in a manner specific to this device.

Parameters

value	Value to check
unit	Unit to check

Returns

true If conversion is possible

false If conversion is not possible

Reimplemented in smc::internal::MGrblAxis, smc::internal::MFEPositionSensor, and smc::internal::GrblAxis.

Definition at line 81 of file DeviceBase.cpp.

convert()

bool DeviceBase::convert ( units::Value &  value, units::unit_t  unit  ) const

virtual

Convert value in a manner specific to this device.

Parameters

value	Value to convert
unit	Unit to convert to

Returns

true If conversion was successful

false If conversion is not possible

Reimplemented in smc::internal::MGrblAxis, smc::internal::MFEPositionSensor, and smc::internal::GrblAxis.

Definition at line 86 of file DeviceBase.cpp.

getConfig()

std::future< std::string > DeviceBase::getConfig ( const std::string &  name ) const

virtual

get device configuration value

Parameters

name	value to retrieve

Returns

the current value (yml encoded)

Reimplemented in smc::internal::MGrblPlatformDevice, smc::internal::MGrblAxis, smc::internal::MFEPositionSensor, smc::internal::MFEAxisPositionMonitor, smc::internal::GrblPlatformDevice, and smc::internal::GrblAxis.

Definition at line 98 of file DeviceBase.cpp.

setConfig()

std::future< void > DeviceBase::setConfig ( const std::string &  name, const std::string &  value  ) const

virtual

set device configuration value

Parameters

name	name of the configuration value to set
value	value to set

Reimplemented in smc::internal::MGrblPlatformDevice, smc::internal::MGrblAxis, smc::internal::MFEPositionSensor, smc::internal::MFEAxisPositionMonitor, smc::internal::GrblPlatformDevice, and smc::internal::GrblAxis.

Definition at line 104 of file DeviceBase.cpp.

uid()

std::string DeviceBase::uid

(

)

const

Get the address of device.

Returns

std::string Address of device

Definition at line 76 of file DeviceBase.cpp.

Here is the caller graph for this function:

Member Data Documentation

updateSignal

ccut::Signal<const DeviceBase::Shared &> smc::DeviceBase::updateSignal

device update signal

this signal is emitted whenever device's cached state is updated

Definition at line 155 of file DeviceBase.hpp.

---

The documentation for this class was generated from the following files:

• /builds/mro/controls/sambuca/sambuca-motion-lib/src/device/DeviceBase.hpp
• /builds/mro/controls/sambuca/sambuca-motion-lib/src/device/DeviceBase.cpp
