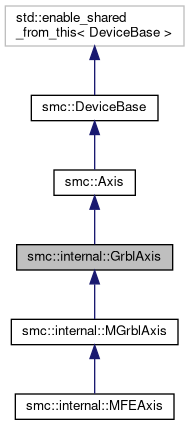

Inheritance diagram for smc::internal::GrblAxis:

[legend]

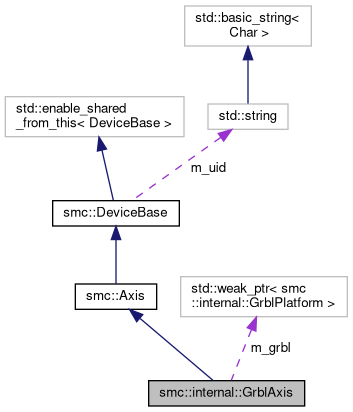

Collaboration diagram for smc::internal::GrblAxis:

[legend]

Public Types
typedef std::shared_ptr< GrblAxis >	Shared

Public Types inherited from smc::Axis
enum	State { UNKNOWN , IDLE , RUNNING , ERROR }
	Axis State. More...

typedef std::shared_ptr< Axis >	Shared

Public Types inherited from smc::DeviceBase
typedef smc::DeviceType	DeviceType

typedef std::shared_ptr< DeviceBase >	Shared

Public Member Functions
	GrblAxis (const std::string &uid, const std::shared_ptr< GrblPlatform > &grbl)

std::future< void >	moveTo (const units::Value &position) const override
	Move this axis to given position. More...

std::future< void >	moveBy (const units::Value &distance) const override
	Move this axis by given distance. More...

std::future< void >	stop () const override
	Stop any ongoing motion, flush the motion-queue. More...

std::future< void >	pause () const override
	Pause ongoing motion, prevent queued motions from running. More...

std::future< void >	resume () const override
	Resume paused motion. More...

std::future< units::value_t >	getPosition (units::unit_t unit) const override
	Get current position of this axis. More...

units::value_t	lastPosition (units::unit_t unit) const override
	Get last known position of the axis. More...

std::future< void >	setActualPosition (const units::Value &position) const override
	Set current axis position. More...

std::future< void >	takeReference (const std::chrono::milliseconds &timeout=std::chrono::seconds{ 120}) const override
	Start a homing sequence. More...

std::future< State >	getState () const override
	Get the current axis state. More...

std::future< std::set< std::string > >	listConfig () const override
	list device configuration options

std::future< std::string >	getConfig (const std::string &name) const override
	get device configuration value More...

std::future< void >	setConfig (const std::string &name, const std::string &value) const override
	set device configuration value More...

bool	canConvert (const units::Value &value, units::unit_t unit) const override
	Check if unit conversion is possible in a manner specific to this device. More...

bool	convert (units::Value &value, units::unit_t unit) const override
	Convert value in a manner specific to this device. More...

Public Member Functions inherited from smc::Axis
	Axis (const std::string &address)
	Construct a new Axis Device at given location on given platform. More...

DeviceType	type () const override
	Get device type. More...

Public Member Functions inherited from smc::DeviceBase
DeviceId	uid () const
	Get the address of device. More...

std::string	toString () const
	debug and logging operation

Protected Attributes
std::weak_ptr< GrblPlatform >	m_grbl

Protected Attributes inherited from smc::DeviceBase
const std::string	m_uid

Additional Inherited Members
Public Attributes inherited from smc::DeviceBase
ccut::Signal< const DeviceBase::Shared & >	updateSignal
	device update signal More...

Protected Member Functions inherited from smc::DeviceBase
	DeviceBase (const std::string &uid)
	Construct a new ABaseDevice, linking pointer to platform object. More...

Detailed Description

Definition at line 36 of file GrblAxis.hpp.

Member Function Documentation

◆ canConvert()

bool GrblAxis::canConvert	(	const units::Value &	value,
		units::unit_t	unit
	)		const

overridevirtual

Check if unit conversion is possible in a manner specific to this device.

Parameters

value	Value to check
unit	Unit to check

Returns: true If conversion is possible; false If conversion is not possible

Reimplemented from smc::DeviceBase.

Reimplemented in smc::internal::MGrblAxis.

Definition at line 506 of file GrblAxis.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ convert()

bool GrblAxis::convert	(	units::Value &	value,
		units::unit_t	unit
	)		const

overridevirtual

Convert value in a manner specific to this device.

Parameters

value	Value to convert
unit	Unit to convert to

Returns: true If conversion was successful; false If conversion is not possible

Reimplemented from smc::DeviceBase.

Reimplemented in smc::internal::MGrblAxis.

Definition at line 512 of file GrblAxis.cpp.

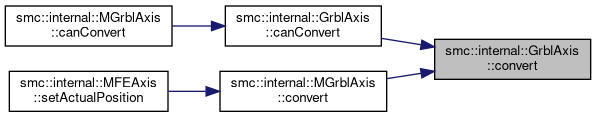

Here is the caller graph for this function:

◆ getConfig()

std::future< std::string > GrblAxis::getConfig ( const std::string & name ) const

overridevirtual

get device configuration value

Parameters

name	value to retrieve

Returns: the current value (yml encoded)

Reimplemented from smc::DeviceBase.

Reimplemented in smc::internal::MGrblAxis.

Definition at line 434 of file GrblAxis.cpp.

Here is the caller graph for this function:

◆ getPosition()

std::future< units::value_t > GrblAxis::getPosition ( units::unit_t unit ) const

overridevirtual

Get current position of this axis.

Returns: future<mm> Future completed with value when command executed.

Implements smc::Axis.

Reimplemented in smc::internal::MGrblAxis.

Definition at line 238 of file GrblAxis.cpp.

Here is the caller graph for this function:

◆ getState()

std::future< Axis::State > GrblAxis::getState ( ) const

overridevirtual

Get the current axis state.

Get the state of the axis: Idle, Run, Error, Unknown

Returns: future<State> Future completed with status when command executed

Implements smc::Axis.

Reimplemented in smc::internal::MGrblAxis.

Definition at line 391 of file GrblAxis.cpp.

Here is the caller graph for this function:

◆ lastPosition()

units::value_t GrblAxis::lastPosition ( units::unit_t unit ) const

overridevirtual

Get last known position of the axis.

Returns: units::value_t

updateSignal is emitted whenever this value updated

Implements smc::Axis.

Reimplemented in smc::internal::MGrblAxis.

Definition at line 308 of file GrblAxis.cpp.

Here is the caller graph for this function:

◆ moveBy()

std::future< void > GrblAxis::moveBy ( const units::Value & distance ) const

overridevirtual

Move this axis by given distance.

Parameters

distance Distance to move by

Returns: future<void> Future completed when command executed

Implements smc::Axis.

Reimplemented in smc::internal::MGrblAxis.

Definition at line 92 of file GrblAxis.cpp.

Here is the caller graph for this function:

◆ moveTo()

std::future< void > GrblAxis::moveTo ( const units::Value & position ) const

overridevirtual

Move this axis to given position.

Parameters

position Position to move to

Returns: future<void> Future completed when command executed

Implements smc::Axis.

Reimplemented in smc::internal::MGrblAxis.

Definition at line 48 of file GrblAxis.cpp.

Here is the caller graph for this function:

◆ pause()

std::future< void > GrblAxis::pause ( ) const

overridevirtual

Pause ongoing motion, prevent queued motions from running.

Pauses ongoing motion using proper deceleration, motion may be resumed using Axis::resume.

Returns: future<void> Future completed when motion is stopped

Reimplemented from smc::Axis.

Reimplemented in smc::internal::MGrblAxis.

Definition at line 195 of file GrblAxis.cpp.

Here is the caller graph for this function:

◆ resume()

std::future< void > GrblAxis::resume ( ) const

overridevirtual

Resume paused motion.

resumes paused motion using proper acceleration.

Returns: std::future<void>

Reimplemented from smc::Axis.

Reimplemented in smc::internal::MGrblAxis.

Definition at line 216 of file GrblAxis.cpp.

Here is the caller graph for this function:

◆ setActualPosition()

std::future< void > GrblAxis::setActualPosition ( const units::Value & position ) const

overridevirtual

Set current axis position.

Parameters

position new position for axis

Returns: future<void> Future completed when command executed

Reimplemented from smc::Axis.

Reimplemented in smc::internal::MGrblAxis, and smc::internal::MFEAxis.

Definition at line 273 of file GrblAxis.cpp.

Here is the caller graph for this function:

◆ setConfig()

std::future< void > GrblAxis::setConfig	(	const std::string &	name,
		const std::string &	value
	)		const

overridevirtual

set device configuration value

Parameters

name	name of the configuration value to set
value	value to set

Reimplemented from smc::DeviceBase.

Reimplemented in smc::internal::MGrblAxis.

Definition at line 478 of file GrblAxis.cpp.

◆ stop()

std::future< void > GrblAxis::stop ( ) const

overridevirtual

Stop any ongoing motion, flush the motion-queue.

Stop ongoing motion using proper deceleration, reject pending promises. This may stop other axis depending on motion-queue implementation (ex: axis bound to the same Grbl instance).

Returns: future<void> Future completed when everything has been cleared

Implements smc::Axis.

Reimplemented in smc::internal::MGrblAxis.

Definition at line 172 of file GrblAxis.cpp.

Here is the caller graph for this function:

◆ takeReference()

std::future< void > GrblAxis::takeReference ( const std::chrono::milliseconds & timeout = std::chrono::seconds{ 120} ) const

overridevirtual

Start a homing sequence.

Parameters

timeout Timeout for homing sequence request

Returns: future<void> Future completed when command executed

Reimplemented from smc::Axis.

Reimplemented in smc::internal::MGrblAxis.

Definition at line 329 of file GrblAxis.cpp.

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

/builds/mro/controls/sambuca/sambuca-motion-lib/src/platform/specialized/GrblPlatform/GrblAxis.hpp
/builds/mro/controls/sambuca/sambuca-motion-lib/src/platform/specialized/GrblPlatform/GrblAxis.cpp
