smc::Gpio Class Reference

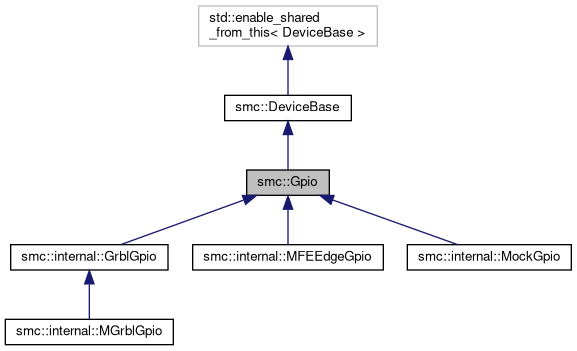

Inheritance diagram for smc::Gpio:

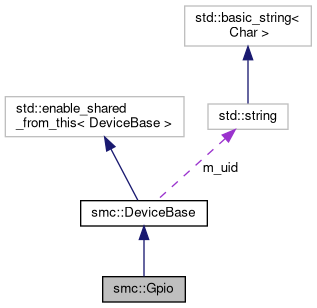

Collaboration diagram for smc::Gpio:

Public Types
typedef std::shared_ptr< Gpio >	Shared
Public Types inherited from smc::DeviceBase
typedef smc::DeviceType	DeviceType
typedef std::shared_ptr< DeviceBase >	Shared

Public Member Functions
	Gpio (const std::string &address)
	Construct a new GPIO Device at given location on given platform. More...
DeviceType	type () const override
	Get device type. More...
virtual std::future< void >	setIoState (const units::io_port_t &state) const =0
	Set state of this IO. More...
virtual std::future< units::io_port_t >	getIoState () const =0
	Get current state of this GPIO. More...
Public Member Functions inherited from smc::DeviceBase
DeviceId	uid () const
	Get the address of device. More...
virtual std::future< std::set< std::string > >	listConfig () const
	list device configuration options
virtual std::future< std::string >	getConfig (const std::string &name) const
	get device configuration value More...
virtual std::future< void >	setConfig (const std::string &name, const std::string &value) const
	set device configuration value More...
virtual bool	canConvert (const units::Value &value, units::unit_t unit) const
	Check if unit conversion is possible in a manner specific to this device. More...
virtual bool	convert (units::Value &value, units::unit_t unit) const
	Convert value in a manner specific to this device. More...
std::string	toString () const
	debug and logging operation

Additional Inherited Members
Public Attributes inherited from smc::DeviceBase
ccut::Signal< const DeviceBase::Shared & >	updateSignal
	device update signal More...
Protected Member Functions inherited from smc::DeviceBase
	DeviceBase (const std::string &uid)
	Construct a new ABaseDevice, linking pointer to platform object. More...
Protected Attributes inherited from smc::DeviceBase
const std::string	m_uid

Detailed Description

Definition at line 41 of file Gpio.hpp.

Constructor & Destructor Documentation

Gpio()

smc::Gpio::Gpio

(

const std::string &

address

)

Construct a new GPIO Device at given location on given platform.

Parameters

platform	Platform on which GPIO is located
address	Unique address of the GPIO

Definition at line 31 of file Gpio.cpp.

Member Function Documentation

getIoState()

virtual std::future<units::io_port_t> smc::Gpio::getIoState ( ) const

pure virtual

Get current state of this GPIO.

Returns

future<steps> Future completed with value when command executed.

Implemented in smc::internal::MockGpio, smc::internal::MGrblGpio, smc::internal::MFEEdgeGpio, and smc::internal::GrblGpio.

setIoState()

virtual std::future<void> smc::Gpio::setIoState ( const units::io_port_t &  state ) const

pure virtual

Set state of this IO.

Returns

future<mm> Future completed when action completed

Implemented in smc::internal::MockGpio, smc::internal::MGrblGpio, smc::internal::MFEEdgeGpio, and smc::internal::GrblGpio.

type()

DeviceBase::DeviceType smc::Gpio::type ( ) const

overridevirtual

Get device type.

Returns

DeviceType GPIO device type

Implements smc::DeviceBase.

Definition at line 33 of file Gpio.cpp.

---

The documentation for this class was generated from the following files:

• /builds/mro/controls/sambuca/sambuca-motion-lib/src/device/Gpio.hpp
• /builds/mro/controls/sambuca/sambuca-motion-lib/src/device/Gpio.cpp
