Inheritance diagram for smc::internal::MockAxis:

[legend]

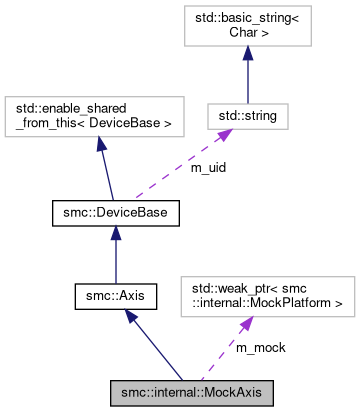

Collaboration diagram for smc::internal::MockAxis:

[legend]

Public Member Functions
	MockAxis (const std::string &uid, const std::shared_ptr< MockPlatform > &platform)

std::future< void >	moveTo (const units::Value &position) const override
	Move this axis to given position. More...

std::future< void >	moveBy (const units::Value &distance) const override
	Move this axis by given distance. More...

std::future< void >	stop () const override
	Stop any ongoing motion, flush the motion-queue. More...

std::future< void >	pause () const override
	Pause ongoing motion, prevent queued motions from running. More...

std::future< void >	resume () const override
	Resume paused motion. More...

std::future< units::value_t >	getPosition (units::unit_t unit) const override
	Get current position of this axis. More...

units::value_t	lastPosition (units::unit_t unit) const override
	Get last known position of the axis. More...

std::future< void >	setActualPosition (const units::Value &position) const override
	Set current axis position. More...

std::future< void >	takeReference (const std::chrono::milliseconds &timeout) const override
	Start a homing sequence. More...

std::future< State >	getState () const override
	Get the current axis state. More...

Public Member Functions inherited from smc::Axis
	Axis (const std::string &address)
	Construct a new Axis Device at given location on given platform. More...

DeviceType	type () const override
	Get device type. More...

Public Member Functions inherited from smc::DeviceBase
DeviceId	uid () const
	Get the address of device. More...

virtual std::future< std::set< std::string > >	listConfig () const
	list device configuration options

virtual std::future< std::string >	getConfig (const std::string &name) const
	get device configuration value More...

virtual std::future< void >	setConfig (const std::string &name, const std::string &value) const
	set device configuration value More...

virtual bool	canConvert (const units::Value &value, units::unit_t unit) const
	Check if unit conversion is possible in a manner specific to this device. More...

virtual bool	convert (units::Value &value, units::unit_t unit) const
	Convert value in a manner specific to this device. More...

std::string	toString () const
	debug and logging operation

Protected Attributes
std::weak_ptr< MockPlatform >	m_mock

Protected Attributes inherited from smc::DeviceBase
const std::string	m_uid

Additional Inherited Members
Public Types inherited from smc::Axis
enum	State { UNKNOWN , IDLE , RUNNING , ERROR }
	Axis State. More...

typedef std::shared_ptr< Axis >	Shared

Public Types inherited from smc::DeviceBase
typedef smc::DeviceType	DeviceType

typedef std::shared_ptr< DeviceBase >	Shared

Public Attributes inherited from smc::DeviceBase
ccut::Signal< const DeviceBase::Shared & >	updateSignal
	device update signal More...

Protected Member Functions inherited from smc::DeviceBase
	DeviceBase (const std::string &uid)
	Construct a new ABaseDevice, linking pointer to platform object. More...

Detailed Description

Definition at line 36 of file MockAxis.hpp.

Member Function Documentation

◆ getPosition()

std::future< units::value_t > MockAxis::getPosition ( units::unit_t unit ) const

overridevirtual

Get current position of this axis.

Returns: future<mm> Future completed with value when command executed.

Implements smc::Axis.

Definition at line 116 of file MockAxis.cpp.

◆ getState()

std::future< Axis::State > MockAxis::getState ( ) const

overridevirtual

Get the current axis state.

Get the state of the axis: Idle, Run, Error, Unknown

Returns: future<State> Future completed with status when command executed

Implements smc::Axis.

Definition at line 255 of file MockAxis.cpp.

◆ lastPosition()

units::value_t MockAxis::lastPosition ( units::unit_t unit ) const

overridevirtual

Get last known position of the axis.

Returns: units::value_t

updateSignal is emitted whenever this value updated

Implements smc::Axis.

Definition at line 219 of file MockAxis.cpp.

◆ moveBy()

std::future< void > MockAxis::moveBy ( const units::Value & distance ) const

overridevirtual

Move this axis by given distance.

Parameters

distance Distance to move by

Returns: future<void> Future completed when command executed

Implements smc::Axis.

Definition at line 77 of file MockAxis.cpp.

◆ moveTo()

std::future< void > MockAxis::moveTo ( const units::Value & position ) const

overridevirtual

Move this axis to given position.

Parameters

position Position to move to

Returns: future<void> Future completed when command executed

Implements smc::Axis.

Definition at line 41 of file MockAxis.cpp.

◆ pause()

std::future< void > MockAxis::pause ( ) const

overridevirtual

Pause ongoing motion, prevent queued motions from running.

Pauses ongoing motion using proper deceleration, motion may be resumed using Axis::resume.

Returns: future<void> Future completed when motion is stopped

Reimplemented from smc::Axis.

Definition at line 154 of file MockAxis.cpp.

◆ resume()

std::future< void > MockAxis::resume ( ) const

overridevirtual

Resume paused motion.

resumes paused motion using proper acceleration.

Returns: std::future<void>

Reimplemented from smc::Axis.

Definition at line 168 of file MockAxis.cpp.

◆ setActualPosition()

std::future< void > MockAxis::setActualPosition ( const units::Value & position ) const

overridevirtual

Set current axis position.

Parameters

position new position for axis

Returns: future<void> Future completed when command executed

Reimplemented from smc::Axis.

Definition at line 182 of file MockAxis.cpp.

◆ stop()

std::future< void > MockAxis::stop ( ) const

overridevirtual

Stop any ongoing motion, flush the motion-queue.

Stop ongoing motion using proper deceleration, reject pending promises. This may stop other axis depending on motion-queue implementation (ex: axis bound to the same Grbl instance).

Returns: future<void> Future completed when everything has been cleared

Implements smc::Axis.

Definition at line 140 of file MockAxis.cpp.

◆ takeReference()

std::future< void > MockAxis::takeReference ( const std::chrono::milliseconds & timeout ) const

overridevirtual

Start a homing sequence.

Parameters

timeout Timeout for homing sequence request

Returns: future<void> Future completed when command executed

Reimplemented from smc::Axis.

Definition at line 234 of file MockAxis.cpp.

The documentation for this class was generated from the following files:

/builds/mro/controls/sambuca/sambuca-motion-lib/src/platform/specialized/MockPlatform/MockAxis.hpp
/builds/mro/controls/sambuca/sambuca-motion-lib/src/platform/specialized/MockPlatform/MockAxis.cpp
