main entry-point More...
#include <MotionController.hpp>

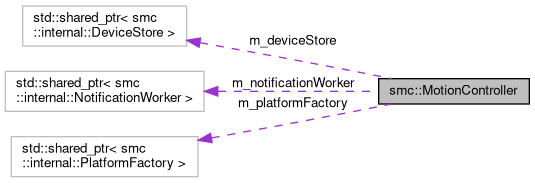

Collaboration diagram for smc::MotionController:
Public Member Functions | |
| MotionController () | |
| Construct a new MotionController object. | |
| std::size_t | load (const std::string &config) |
| Construct platforms and devices based on given configuration string. More... | |
| std::size_t | getDeviceCount () const |
| Get the number of registered devices. More... | |
| DeviceBase::Shared | getDevice (const DeviceId &address) |
| get a generic device according to its address More... | |
| template<typename T > | |
| std::shared_ptr< T > | getDevice (const DeviceId &address) |
| Get the device object pointer. More... | |
| std::set< DeviceId > | getDeviceList () const |
| retrieve complete list of devices | |
| std::set< DeviceId > | getDeviceList (DeviceType type) const |
| retrieve complete list of devices of a given type More... | |
| std::set< std::string > | getAliasList () const |
| Get current Alias list. | |
| DeviceId | getAlias (const std::string &alias) const |
| Get the given alias. More... | |
| bool | addAlias (const std::string &alias, const DeviceId &deviceId, bool override=true) |
| add an alias More... | |
| void | removeAlias (const std::string &alias) |
| remove an alias | |
| std::shared_ptr< internal::PlatformFactory > | getPlatformFactory () const |
| for internal use and debugging purpose | |
| std::shared_ptr< internal::DeviceStore > | getDeviceStore () const |
| for internal use and debugging purpose | |
Protected Attributes | |
| std::shared_ptr< internal::PlatformFactory > | m_platformFactory |
| std::shared_ptr< internal::DeviceStore > | m_deviceStore |
| std::shared_ptr< internal::NotificationWorker > | m_notificationWorker |
Detailed Description
main entry-point
Definition at line 62 of file MotionController.hpp.
Member Function Documentation
◆ addAlias()
| bool smc::MotionController::addAlias | ( | const std::string & | alias, |
| const DeviceId & | deviceId, | ||
| bool | override = true |
||
| ) |
add an alias
- Parameters
-
[in] alias the alias name [in] deviceId deviceId to alias
- Returns
- true if the alias was created
-
false if alias already exist (and
override=false)
Definition at line 125 of file MotionController.cpp.
◆ getAlias()
| DeviceId smc::MotionController::getAlias | ( | const std::string & | alias | ) | const |
Get the given alias.
- Returns
- an empty string if the alias doesn't exist
Definition at line 120 of file MotionController.cpp.
◆ getDevice() [1/2]
| DeviceBase::Shared smc::MotionController::getDevice | ( | const DeviceId & | address | ) |
get a generic device according to its address
- Parameters
-
address Address of the device to get
- Returns
- shared_ptr<T> Pointer to requested device
Definition at line 95 of file MotionController.cpp.
Here is the caller graph for this function:
◆ getDevice() [2/2]
template<typename T >
| std::shared_ptr< T > smc::MotionController::getDevice | ( | const DeviceId & | address | ) |
Get the device object pointer.
- Parameters
-
address Address of the device to get
- Returns
- shared_ptr<T> Pointer to requested device
Definition at line 35 of file MotionController.hxx.
Here is the call graph for this function:
◆ getDeviceCount()
| size_t smc::MotionController::getDeviceCount | ( | ) | const |
Get the number of registered devices.
- Returns
- const size_t Number of devices
Definition at line 100 of file MotionController.cpp.
◆ getDeviceList()
| std::set< std::string > smc::MotionController::getDeviceList | ( | DeviceType | type | ) | const |
retrieve complete list of devices of a given type
- Parameters
-
type
- Returns
- std::set<DeviceId>
Definition at line 110 of file MotionController.cpp.
◆ load()
| size_t smc::MotionController::load | ( | const std::string & | config | ) |
Construct platforms and devices based on given configuration string.
- Parameters
-
config Configuration string (YAML)
- Returns
- int32_t Number of devices configured
Definition at line 65 of file MotionController.cpp.
The documentation for this class was generated from the following files:
- /builds/mro/controls/sambuca/sambuca-motion-lib/src/MotionController.hpp
- /builds/mro/controls/sambuca/sambuca-motion-lib/src/MotionController.cpp
- /builds/mro/controls/sambuca/sambuca-motion-lib/src/MotionController.hxx
