grbl::MGrblDeviceWrapper Class Reference

Class for implementing Multi-Grbl functionality on top of GrblDeviceBase. More...

#include <MGrblDeviceWrapper.hpp>

Inheritance diagram for grbl::MGrblDeviceWrapper:

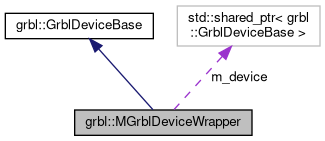

Collaboration diagram for grbl::MGrblDeviceWrapper:

Public Member Functions
	MGrblDeviceWrapper (size_t instance, const std::shared_ptr< grbl::GrblDeviceBase > &device)
void	read () override
	fill LineBuffer with incoming bytes
void	write (const std::string &data) override
	raw write some bytes More...
grbl::ErrorCode	send (const std::string &cmd, std::function< bool(const std::string &)> msg=[](const std::string &) { return false;}, const std::chrono::milliseconds &timeout=defaultSendTimeout) override
	Send message appending instance id and stripping it off the response provided to handler. More...
grbl::ErrorCode	sendRealtime (const std::string &cmd, std::function< bool(const std::string &)> msg, const std::chrono::milliseconds &timeout=defaultSendTimeout) override
	Send realtime message appending instance id and stripping it off the response provided to handler. More...
bool	wait (const std::chrono::milliseconds &timeout) override
	wait for input More...
void	wake () override
	wake thread waiting for input
Public Member Functions inherited from grbl::GrblDeviceBase
void	fetch (const std::chrono::milliseconds &timeout)
	wait for data and process it More...
virtual bool	takeLine (std::string &line)
	consume line from buffer More...

Protected Attributes
size_t	m_instance
std::shared_ptr< grbl::GrblDeviceBase >	m_device
Protected Attributes inherited from grbl::GrblDeviceBase
ccut::LineBuffer	m_buffer

Additional Inherited Members
Public Attributes inherited from grbl::GrblDeviceBase
ccut::Signal< std::string >	dataSignal
Static Public Attributes inherited from grbl::GrblDeviceBase
static const std::chrono::milliseconds	defaultSendTimeout

Detailed Description

Class for implementing Multi-Grbl functionality on top of GrblDeviceBase.

Allows to create MGrblDeviceWrapper object specifying which Grbl instance it belongs to, and then use send() which will append appropriate instance id to message, and strip it before passing response to provided handler.

Definition at line 48 of file MGrblDeviceWrapper.hpp.

Member Function Documentation

send()

grbl::ErrorCode grbl::MGrblDeviceWrapper::send ( const std::string &  cmd, std::function< bool(const std::string &)>  msg = [](const std::string &) { return false; }, const std::chrono::milliseconds &  timeout = defaultSendTimeout  )

overridevirtual

Send message appending instance id and stripping it off the response provided to handler.

Parameters

cmd	Message/command to send
msg	Custom handler for the response
timeout	Timeout for response

Returns

grbl::ErrorCode 0 on success, error-code on error

Reimplemented from grbl::GrblDeviceBase.

Definition at line 50 of file MGrblDeviceWrapper.cpp.

sendRealtime()

grbl::ErrorCode grbl::MGrblDeviceWrapper::sendRealtime ( const std::string &  cmd, std::function< bool(const std::string &)>  msg, const std::chrono::milliseconds &  timeout = defaultSendTimeout  )

overridevirtual

Send realtime message appending instance id and stripping it off the response provided to handler.

Parameters

cmd	Message/command to send
msg	Custom handler for the response
timeout	Timeout for response

Returns

grbl::ErrorCode 0 on success, error-code on error

Reimplemented from grbl::GrblDeviceBase.

Definition at line 69 of file MGrblDeviceWrapper.cpp.

wait()

bool grbl::MGrblDeviceWrapper::wait ( const std::chrono::milliseconds &  timeout )

overridevirtual

wait for input

Parameters

timeout

wait timeout

Returns

true if data is available

Exceptions

Exception(IO)

on IO error

Implements grbl::GrblDeviceBase.

Definition at line 88 of file MGrblDeviceWrapper.cpp.

write()

void grbl::MGrblDeviceWrapper::write ( const std::string &  data )

overridevirtual

raw write some bytes

Parameters

[in]

data

bytes to write

Implements grbl::GrblDeviceBase.

Definition at line 44 of file MGrblDeviceWrapper.cpp.

---

The documentation for this class was generated from the following files:

• /builds/mro/controls/sambuca/sambuca-motion-lib/src/util/grbl/MGrblDeviceWrapper.hpp
• /builds/mro/controls/sambuca/sambuca-motion-lib/src/util/grbl/MGrblDeviceWrapper.cpp
