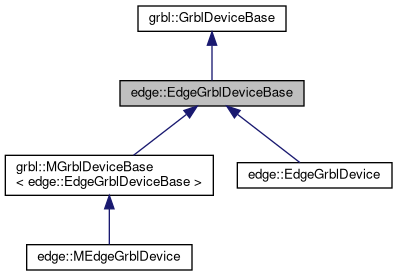

Inheritance diagram for edge::EdgeGrblDeviceBase:

[legend]

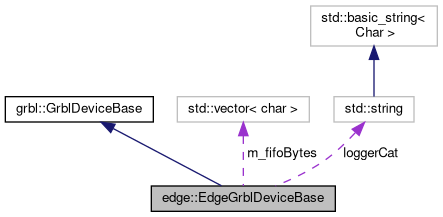

Collaboration diagram for edge::EdgeGrblDeviceBase:

[legend]

Public Member Functions
	EdgeGrblDeviceBase (int lun, const std::string &driverPath=std::string())
	Construct a new EdgeGrblDevice. More...

void	read () override
	fill LineBuffer with incoming bytes

void	write (const std::string &data) override
	raw write some bytes More...

bool	wait (const std::chrono::milliseconds &timeout) override
	wait for input More...

void	wake () override
	wake thread waiting for input

void	read (struct edge_reg *reg, uint32_t &value)
	Get a register value. More...

void	read (struct edge_reg *reg, size_t offset, uint32_t &value)
	Get a register value at depth. More...

void	read (struct edge_reg *reg, std::vector< uint32_t > &values)
	Get all registers. More...

void	write (struct edge_reg *reg, uint32_t value)
	Write a value to register. More...

void	write (struct edge_reg *reg, size_t offset, uint32_t value)
	Write a value to register. More...

struct fmc_mfe_hdl *	getDrv () const
	get driver handler

Public Member Functions inherited from grbl::GrblDeviceBase
void	fetch (const std::chrono::milliseconds &timeout)
	wait for data and process it More...

virtual grbl::ErrorCode	send (const std::string &cmd, std::function< bool(const std::string &)> msg={}, const std::chrono::milliseconds &timeout=defaultSendTimeout)
	send a command wait for reply More...

virtual grbl::ErrorCode	sendRealtime (const std::string &cmd, std::function< bool(const std::string &)> msg={}, const std::chrono::milliseconds &timeout=defaultSendTimeout)
	send a realtime-command wait for reply More...

virtual bool	takeLine (std::string &line)
	consume line from buffer More...

Protected Member Functions
void	init (int lun, const std::string &driverPath)

void	irqLoop ()
	Wait for irq using blocking API and set variables once available.

bool	waitIrq (const std::chrono::milliseconds &timeout, const struct edge_reg *const expectedReg, uint32_t expectedBit)
	Wait for irq from given source. More...

void	drvOpen (int lun, const std::string &simPath, bool isSim)
	Open FMC_MFE device with given driver. More...

void	drvClose ()
	Close the driver.

Protected Attributes
int	m_wakeFd [2]

struct fmc_mfe_hdl *	m_edgeDrvHdl

std::vector< char >	m_fifoBytes

Protected Attributes inherited from grbl::GrblDeviceBase
ccut::LineBuffer	m_buffer

Static Protected Attributes
static const std::string	loggerCat {"edge:edgegrbldevice"}

Additional Inherited Members
Public Attributes inherited from grbl::GrblDeviceBase
ccut::Signal< std::string >	dataSignal

Static Public Attributes inherited from grbl::GrblDeviceBase
static const std::chrono::milliseconds	defaultSendTimeout

Detailed Description

Definition at line 50 of file EdgeGrblDeviceBase.hpp.

Constructor & Destructor Documentation

◆ EdgeGrblDeviceBase()

edge::EdgeGrblDeviceBase::EdgeGrblDeviceBase	(	int	lun,
		const std::string &	driverPath = `std::string()`
	)

explicit

Construct a new EdgeGrblDevice.

Parameters

lun	LUN to use
driverPath	Path of the sim library (leave empty for non-sim)

Definition at line 57 of file EdgeGrblDeviceBase.cpp.

Member Function Documentation

◆ drvOpen()

void edge::EdgeGrblDeviceBase::drvOpen	(	int	lun,
		const std::string &	simPath,
		bool	isSim
	)

protected

Open FMC_MFE device with given driver.

Parameters

lun	LUN of device to open
simPath	Path with FMC_MFE sim driver location
isSim	Set true if simulation driver should be opened

Definition at line 328 of file EdgeGrblDeviceBase.cpp.

◆ read() [1/3]

void edge::EdgeGrblDeviceBase::read	(	struct edge_reg *	reg,
		size_t	offset,
		uint32_t &	value
	)

Get a register value at depth.

Parameters

[in]	reg	register to read
[in]	offset	offset in the register (depth)
[out]	value	register value

Exceptions

smc::Exception on error

Definition at line 268 of file EdgeGrblDeviceBase.cpp.

◆ read() [2/3]

void edge::EdgeGrblDeviceBase::read	(	struct edge_reg *	reg,
		std::vector< uint32_t > &	values
	)

Get all registers.

Parameters

[in]	reg	register to read
	values	values to fill

the values initial size is the register depth

Definition at line 288 of file EdgeGrblDeviceBase.cpp.

◆ read() [3/3]

void edge::EdgeGrblDeviceBase::read	(	struct edge_reg *	reg,
		uint32_t &	value
	)

inline

Get a register value.

Parameters

[in]	reg	register to read
[out]	value	register value

Exceptions

smc::Exception on error

Definition at line 76 of file EdgeGrblDeviceBase.hpp.

Here is the call graph for this function:

◆ wait()

bool edge::EdgeGrblDeviceBase::wait ( const std::chrono::milliseconds & timeout )

overridevirtual

wait for input

Parameters

timeout wait timeout

Returns: true if data is available

Exceptions

Exception(IO) on IO error

Implements grbl::GrblDeviceBase.

Definition at line 175 of file EdgeGrblDeviceBase.cpp.

◆ waitIrq()

bool edge::EdgeGrblDeviceBase::waitIrq	(	const std::chrono::milliseconds &	timeout,
		const struct edge_reg *const	expectedReg,
		uint32_t	expectedBit
	)

protected

Wait for irq from given source.

Parameters

timeout	Timeout for wait.
expectedReg	Expected status register
expectedBit	Expected status bit set

Returns: true Required ISR occured; false Timed out

Definition at line 186 of file EdgeGrblDeviceBase.cpp.

◆ write() [1/3]

void edge::EdgeGrblDeviceBase::write ( const std::string & data )

overridevirtual

raw write some bytes

Parameters

[in] data bytes to write

Implements grbl::GrblDeviceBase.

Definition at line 129 of file EdgeGrblDeviceBase.cpp.

Here is the caller graph for this function:

◆ write() [2/3]

void edge::EdgeGrblDeviceBase::write	(	struct edge_reg *	reg,
		size_t	offset,
		uint32_t	value
	)

Write a value to register.

Parameters

[in]	reg	register to write
[in]	offset	offset in the register (depth)
[in]	value	value to set

Exceptions

smc::Exception on error

Definition at line 308 of file EdgeGrblDeviceBase.cpp.

◆ write() [3/3]

void edge::EdgeGrblDeviceBase::write	(	struct edge_reg *	reg,
		uint32_t	value
	)

inline

Write a value to register.

Parameters

[in]	reg	register to write
[in]	value	value to set

Exceptions

smc::Exception on error

Definition at line 107 of file EdgeGrblDeviceBase.hpp.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

/builds/mro/controls/sambuca/sambuca-motion-lib/src/util/edge/EdgeGrblDeviceBase.hpp
/builds/mro/controls/sambuca/sambuca-motion-lib/src/util/edge/EdgeGrblDeviceBase.cpp
